W600
D700
H1865

416

93

+2/+8

  • General Information

    • Inside and Outside Surface in Special White Steel (Skinplate), which guarantees the absence of corrosion with use
    • Designed to work with temperature between 10°C and 30°C degrees, and relative humidity up to 55%
    • Factory setpoint set at +5°C, can be easily adjusted in the range from +2°C to +8°C
    • Polyurethane Water Base Insulation 50mm, ensures greater temperature stability
    • Ventilated Cooling and Automatic Defrosting System, designed to optimize the air distribution inside, achieving stability and uniformity of temperature as well as quick recovery in case of door opening
    • Removable Shelves to adjust to the type of product to be conserved, in Plastified Steel, to avoid corrosion 5 x (475 x 470mm)
    • Basket in the Bottom (W455 x D350 x H200mm)
    • Reversible Door with Self Closing to closed position, with ergonomic designed handle for easy cleaning
    • Hole for External Probe, with 12mm diameter, allowing a easy access by an external monitoring system
    • Additional mobile probe, working as a mass simulator, allows measure the specific temperature at any point on the equipment
    • Horizontal LED Lighting Inside
    • 4 Rollers + 2 Levelers, allowing transport and level the equipment even in uneven surfaces
    • Locker Included, to prevent unauthorized access
    • ADVANCE Controller (see specifications)
    • Safety Thermostat, which garantees that under no circumstances the temperature inside the equipment will be below +2°C, protecting the products stored inside
    • Compliant with DIN Directive 58345

  • Technical Data

    Code: 800904_1000

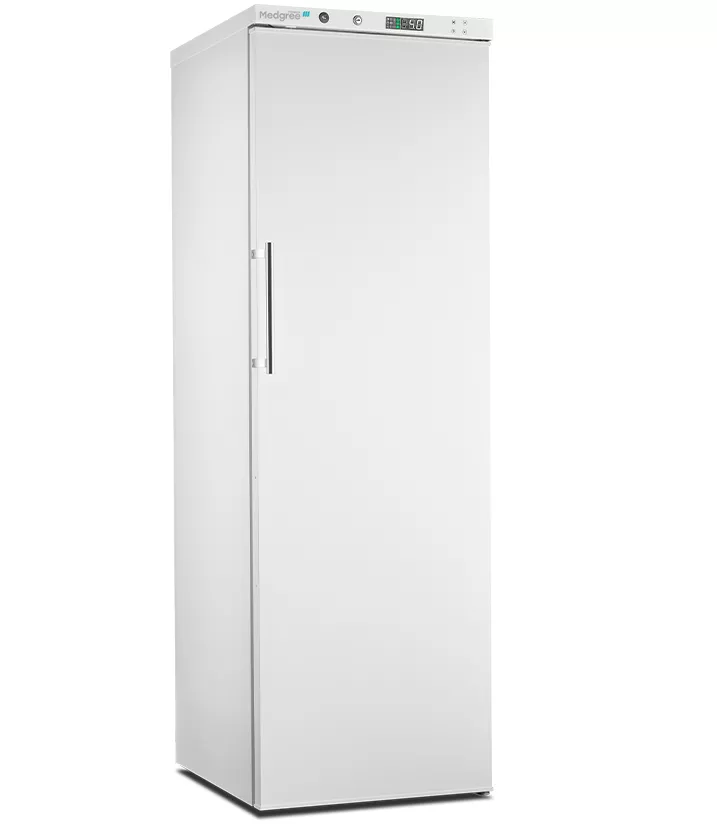

    Model: MPRA 450 S

    Weight: 600mm

    Depth: 700(+50mm

    Height: 1865mm

    Inner Dim. (WxDxH): 480x500x1724

    Net volume (Lt): 416

    Weight (Kg): 93

    Power: 210W

    Tension | Freq.: 230V - 50Hz

    Temperature: +2º/+8º

    Noise Level: < 50 dB

    Consumption: 877 kwh/year

    Outer Material: White Plastic Coated Steel

    Inner Material : White Plastic Coated Steel

    Insulation (mm): 50

    Gas: R 600a

    Shelves (standard): 5

    Max. Weight/ Shelf : 22.3

    Shelf Material: Plastic Coated Steel

    Drawer N.º (Standard/Max.): - | 14

    Defrost: Automatic

    Alarms: High/Low Temperature, Door Open, Probe Failure and Current Failure

    Conections: USB/RS485

    Lock: ✓

    Safety Thermostat: ✓

    Battery Back Up: ✓

    Port Hole: ✓

    Remote Dry Contact: ✓

    Data Logger: ✓

    LED Light: ✓

    Reversible Door: ✓

  • Shipping Information

    Dimension (mm): 620x730x2025

    Load capacity (unit):

    TIR | 20” | 40”
    63 | 27 | 57

  • Acessories

    Shelf
    Cod.007122

    Inox Shelf
    Cod.108666

    Dentei – Shelf holder
    Cod. 004042_002

    Drawer Kit
    Cod.129043_1

    Drawer separator kit
    Cod. 129044

    Basket
    Cod.003356_100

    Inside Inox
    Cod. 129045_2
