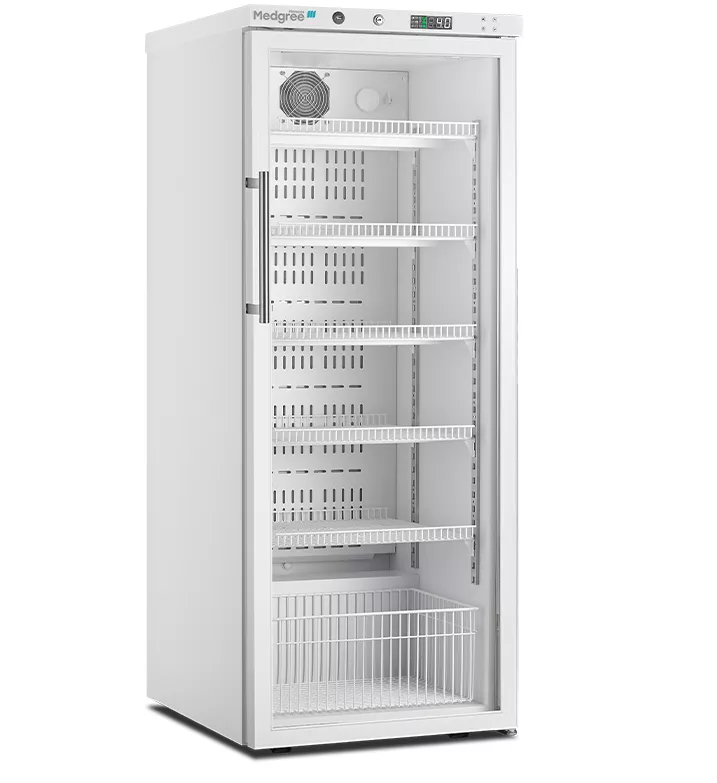

W600
-
General Information
- Inside and Outside Surface in Special White Steel (Skinplate), which guarantees the absence of corrosion with use
- Designed to work with temperature between 10°C and 30°C degrees, and relative humidity up to 55%
- Factory setpoint set at +5°C, can be easily adjusted in the range from +2°C to +8°C
- Polyurethane Water Base Insulation 50mm, ensures greater temperature stability
- Ventilated Cooling and Automatic Defrosting System, designed to optimize the air distribution inside, achieving stability and uniformity of temperature as well as quick recovery in case of door opening
- Removable Shelves to adjust to the type of product to be conserved, in Plastified Steel, to avoid corrosion 5 x (475 x 470mm)
- Basket in the Bottom (W455 x D350 x H200mm)
- Glass Door with Double Tempered Low Emissive Glass and no condensation System
- Reversible Door with Self Closing to closed position, with ergonomic designed handle for easy cleaning
- Hole for External Probe, with 12mm diameter, allowing a easy access by an external monitoring system
- Additional mobile probe, working as a mass simulator, allows measure the specific temperature at any point on the equipment
- Horizontal LED Lighting Inside
- 4 Rollers + 2 Levelers, allowing transport and level the equipment even in uneven surfaces
- Locker Included, to prevent unauthorized access
- ADVANCE Controller (see specifications)
- Safety Thermostat, which garantees that under no circumstances the temperature inside the equipment will be below +2°C, protecting the products stored inside
- Compliant with DIN Directive 58345
-
Technical Data
Code: 800905_1000
Model: MPRA 350 G
Weight: 600mm
Depth: 700(+50mm
Height: 1510mm
Inner Dim. (WxDxH): 480x500x1358
Net volume (Lt): 324
Weight (Kg): 91
Power: 200W
Tension | Freq.: 230V - 50Hz
Temperature: +2º/+8º
Noise Level: < 50 dB
Consumption: 985 kwh/year
Outer Material: White Plastic Coated Steel
Inner Material : White Plastic Coated Steel
Insulation (mm): 50
Gas: R 600a
Shelves (standard): 5
Max. Weight/ Shelf : 22.3
Shelf Material: Plastic Coated Steel
Drawer N.º (Standard/Max.): - | 10
Defrost: Automatic
Alarms: High/Low Temperature, Door Open, Probe Failure and Current Failure
Conections: USB/RS485
Lock: ✓
Safety Thermostat: ✓
Battery Back Up: ✓
Port Hole: ✓
Remote Dry Contact: ✓
Data Logger: ✓
LED Light: ✓
Reversible Door: ✓
-
Shipping Information
Dimension (mm): 620x730x1660
Load capacity (unit):
TIR | 20” | 40”
63 | 27 | 57 -
Acessories
Shelf
Cod.007122Stainless steel shelf
Cod.108666Dentei – Shelf holder
Cod. 004042_002Drawer Kit
Cod.129043_1Drawer separator kit
Cod. 129044Basket
Cod.003356_100Inside Inox
Cod.129045_1
